Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming

Brand Name : wenyou

Model Number : 8517

Certification : ISO9001, ISO14001, SGS, and UL

Place of Origin : China

MOQ : 20kg/pail as sample

Price : Negotiable

Payment Terms : Normally T/T, L/C

Supply Ability : Plenty of raw material in stock

Delivery Time : 7 -10 work days

Packaging Details : 20kg/pail, 220kg/barrel, 1200kg/tank

Classification : Double Components Adhesives

Usage : insulators, transformers, and other insulation products

Application : Outdoor electrical insulators for medium and high voltage applications

Appearance of epoxy resin : Light yellow transparent viscous liquid

Viscosity at 25°C : 1000 - 2500mPa.s

Density at 25°C : 1.16 - 1.20g/cm3

Vapor Pressure at 25°C : < 0.01Pa

Flash point : around 135°C

Discription : Outdoor transformer crystal epoxy UV resistance clear liquid resin APG forming

Epoxy value : 4.5 - 5.0Eq/kg

Contact Now

Brief Introduction

Outdoor transformer crystal epoxy UV resistance clear liquid resin APG forming

LE-8517 is a modified saturated cyclic aliphatic epoxy resin system.
LH-8517 is a modified weather-resistant anhydride hardener.

Applications

Outdoor electrical insulators for medium and high voltage applications, such as insulators, transformers, and other insulation products.

Processing Methods

Conventional gravity casting process under vacuum.

Automatic pressure gelation process (APG).

Production process is adjustable according to client’s present production methods.

Properties

Two-component saturated cyclic epoxy resin system without pre-mixed fillers, liquid at room temperature.
Excellent UV resistance, excellent resistance to thermal shock, superior environmental resistance, and superior mechanical and dielectric properties.

Formulation

Epoxy resin LE-8517 100 pbw
Hardener LH-8517 100 pbw
Filler Silica powder 300 - 360 pbw
Color paste LC series * 3 pbw

Advantage

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming

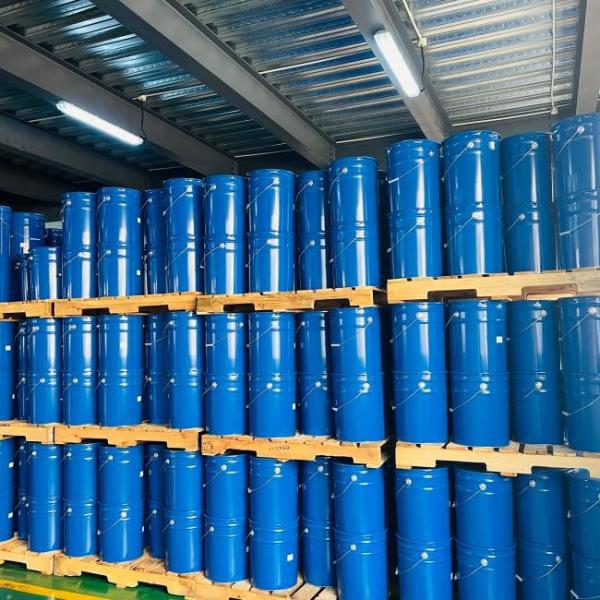

Package Image

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming

Shipment image

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming

Example application image

Outdoor Transformer Crystal Epoxy UV Resistance Clear Liquid Resin APG Forming
